Deskripsi :

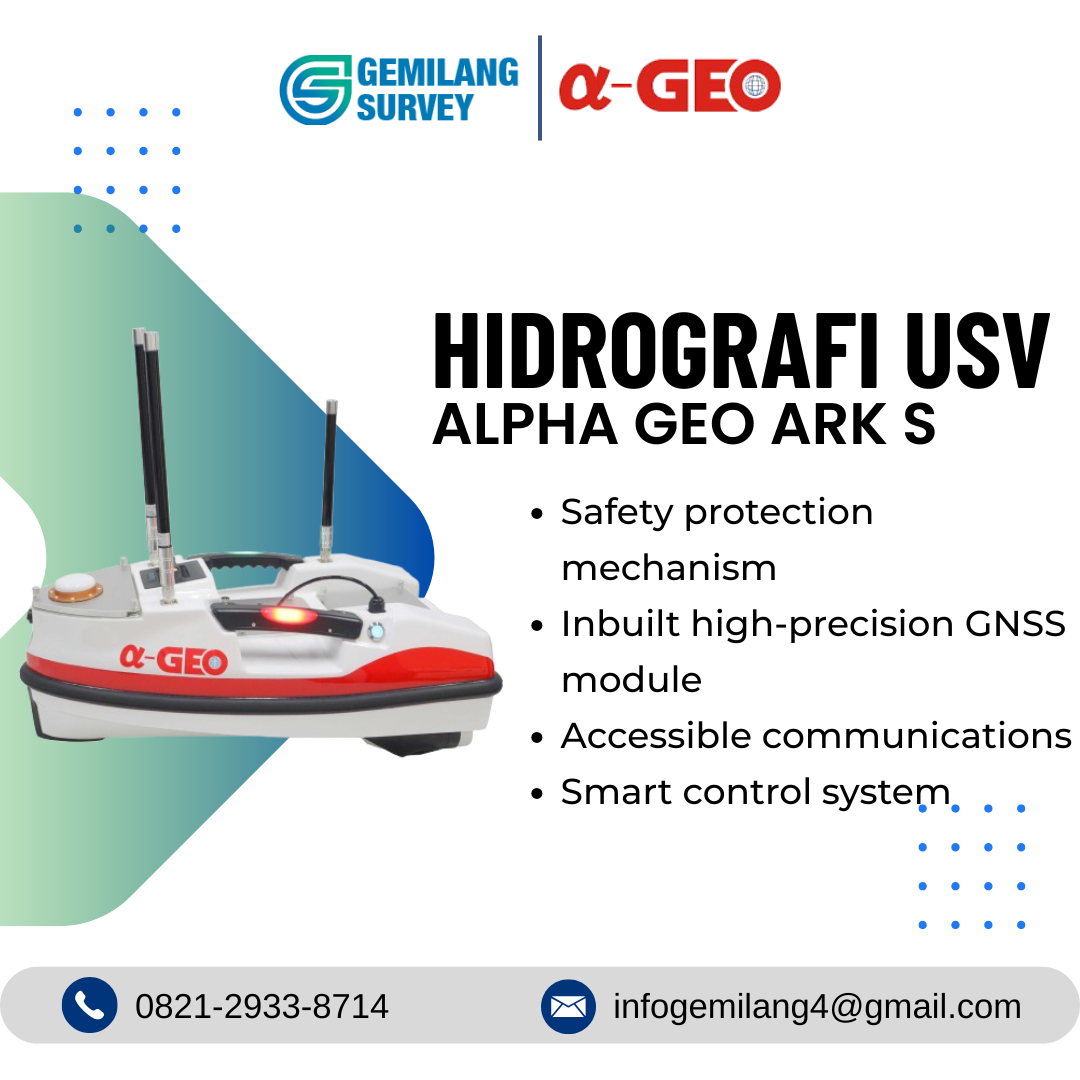

USV Alpha Geo ARKS
USV Alpha Geo ARKS adalah kapal survei tak berawak (USV – Unmanned Surface Vehicle) dengan desain trimaran berbentuk V yang dibuat dari material Kevlar dan serat karbon berkekuatan tinggi. Kombinasi ini menjadikannya ringan, tahan benturan, serta sangat kuat. Kapal ini dirancang untuk membawa berbagai sensor pengukuran sesuai kebutuhan dan dapat digunakan di berbagai kondisi operasional yang kompleks.
SPESIFIKASI :
| Physical | Dimensions | 750mm(L)x410mm(W)x230mm(H) |
| Materials | Kevlar+Carbon fiber materials | |
| Weight | 5kg | |
| Maximum load | 8kg | |
| Anti-wave & wind | Level 2 wave, level 3 wind | |
| Boat shape | V-shaped | |
| Navigation lights | A pair of 2-color navigation lights | |
| Camera | Real-time HD video transmission | |
| Available instrumentation | Single-beam echo-sounder(Standard) | |
| Side scanning sonar(Optional) | ||
| ADCP (Optional) | ||
| Online water quality monitoring system(Optional) | ||
| Water sampling system(Optional) | ||
| Electrical | Battery life | 4 hours (2 m/s) |
| Cruising speed | 1.5 m/s~2 m/s | |
| Maximum speed | 5 m/s | |
| Motor | Brushless DC motor(BLDCM) | |
| Propeller | Ducted propeller | |
| Navigation and commander system | Navigation model | Manual/Automatic/Cruise |
| Positioning system | Assigned GNSS device,supports GPS/BDS | |
| Obstacle avoidance | Ultrasonic radar | |
| Direction control | Supports servo-free steering and“reverse”function | |
| Communication loss protection | Automatically return when lose the communication | |
| Communication | Communication mode | Real-timeRF point-to-point communication |
| Communication distance | 2 km | |
| Hardware configuration | Laptop/tablet/ground station(optional) | |
| Software platform | Windows/Android | |
| Software function | USV management/Route management/Status display/Data management/Log function | |
| Remote control unit | Waterproof, dust proof and drop-resistant Digital HD image transmission, Ultra-long link Impressive battery endurance | |
| Sounding performance | Frequency | 200 kHz |
| Beam angle | 5° | |
| Sounding angle | 0.4~100 m | |
| Sounding accuracy | +1cm +0.1%D(D: depth of water) | |
| Resolution | 0.01 m | |
| Data output | RS-232 (Depth data format can be customized) | |
| Pressure depth | ≥50 m |
