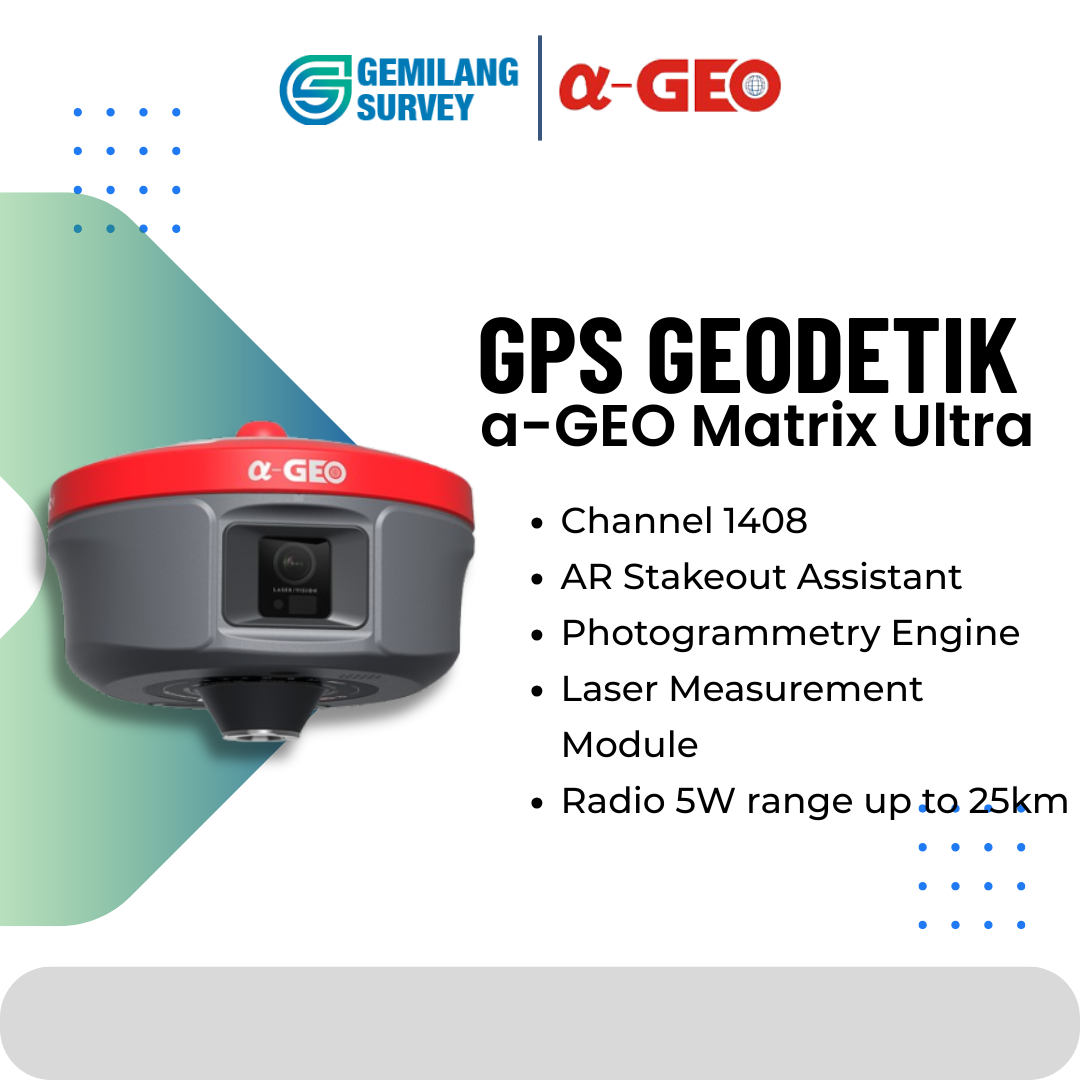

GPS Geodetik Alpha Geo Matrix Ultra
GPS Geodetik Alpha Geo Matrix Ultra adalah receiver premium dengan 1598 saluran (full constellation) untuk akurasi tinggi milimeter, mendukung GPS, GlLONASS, BeiDou, Galileo, QZSS dan IRNSS. Fitur Utamanya mencakup IMU 4D (kemiringan), radio internal 5 WAT (jarak jauh) dan daya baterai besar, ideal untuk survei presisi.
Berikut adalah detail teknis dan fitur dari GPS Geodetik Alpha Geo Matrix Ultra :
- Saluran & Konstelasi: 1598 saluran, mendukung semua konstelasi satelit (GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, dan IRNSS).
- Akurasi RTK: Akurasi tinggi milimeter-level dengan inisialisasi IMU 4D (3 detik), akurasi tilt 2,5 cm, dan mampu menahan kemiringan.
- Fitur Fisik & Proteksi: Standar IP67, tahan terhadap perendaman air selama 30 menit (kedalaman 1m) dan tahan jatuh dari tongkat setinggi 2 meter ke beton.
- Komunikasi & Radio: Radio internal 5W berkecepatan tinggi, Bluetooth, Wi-Fi, 4G LTE, dan WebUI.
- Baterai: Tahan hingga 20-40 jam dalam mode Rover, dan hingga 7 jam dalam mode Base (5W).
- Penyimpanan Data: Mampu menyimpan data mentah (raw data) untuk jangka waktu yang lama.
Specifications :
| Model | Matrix Ultra
UM980(BD990 Optional) |
Super Base
Matrix Ultra-B |
|
| GNSS Performance | |||
| Signal tracking | GPS: L 1 C/A, L2C, L2P, L5 | GPS: L 1 C/A, L2C, L2P, L5 | |
| GLONASS: L 1, L2 | GLONASS: L 1, L2 | ||
| BDS: B1, B1C, B2, B2a, B2b, B3 | BDS: B1, B1C, B2, B2a, B2b, B3 | ||
| GALILEO: E1, E5a, E5b, E6 | GALILEO: E1, E5a, E5b, E6 | ||
| QZSS: L 1, L2, L5, L6 | QZSS: L 1, L2, L5, L6 | ||
| IRNSS: L5 | IRNSS: L5 | ||
| SBAS: L1, L5* | SBAS: L1, L5* | ||
| L-Band | B2b(BDSPPP), E6B(HAS) | B2b(BDSPPP), E6B(HAS) | |
| Channels | 1408 | 1408 | |
| Cold start | <60s | <60s | |
| Hot start | <15s | <15s | |
| Positioning output rate | 1Hz ~ 50Hz | 1Hz ~ 50Hz | |
| Signal reacquisition | <1s | <1s | |
| RTK initialization time | <5s | <5s | |
| Initialization reliability | >99.99% | >99.99% | |
| Time accuracy | 20ns | 20ns | |
| Positioning accuracy 1 | |||
| Code differential GNSS positioning | H: 0.25m + 1ppm RMS | H: 0.25m + 1ppm RMS | |
| V: 0.50m + 1ppm RMS | V: 0.50m + 1ppm RMS | ||
| SBAS differential positioning accuracy 2 | Typically < 5m 3DRMS | Typically < 5m 3DRMS | |
| Static GNSS surveying | H: 2.5mm + 0.5ppm RMS | H: 2.5mm + 0.5ppm RMS | |
| V: 5mm + 0.5ppm RMS | V: 5mm + 0.5ppm RMS | ||
| Network RTK 3 | H: 8mm + 0.5ppm RMS | H: 8mm + 0.5ppm RMS | |
| V: 15mm + 0.5ppm RMS | V: 15mm + 0.5ppm RMS | ||
| Laser measurement | 1cm + 5mm/m | None | |
| Photogrammetry accuracy | 2~4 cm 95% (2σ) (10m, normal lighting conditions) | None | |
| Sensor | |||
| IMU | Supported, 4D IMU initialization in 3 seconds | Supported, 4D IMU initialization in 3 seconds | |
| Update rate | 400Hz | 400Hz | |
| Accuracy | <2.5cm within 120° | <2.5cm within 120° | |
| Tilt compensation | 0~120° | 0~120° | |
| Camera | |||
| Visual camera | Global shutter with 2MP | None | |
| AR stakeout camera | 5MP | None | |
| FOV | 84° | None | |
| Physical | |||
| Materials | Magnesium alloy | Magnesium alloy | |
| Dimensions | 149*149*111mm | ||
| Weight | 1.02kg | 1.2kg | |
| Operating temperature | -40℃~+75℃ | -40℃~+75℃ | |
| Storage temperature | -55℃~+85℃ | ||
| Waterproof/Dustproof | IP67 standard, protect from 30min immersion to depth of 1m | ||
| Shock | Survive a 2m pole drop onto concrete | Survive a 2m pole drop onto concrete | |
| Vibration | MIL-STD-810G | MIL-STD-810G | |
| Humidity | 100% non-condensing | 100% non-condensing | |
| Electrical | |||
| Power supply | 9~24V DC external power input to 5-pin LEMO port,
supports Type-C fast charging |
9~24V DC external power input to 5-pin LEMO port,
supports Type-C fast charging |
|
| Battery | Built-in 7000mAh-7.4V Li-ion battery | Built-in 14000mAh-7.4V Li-ion battery | |
| Battery life | 20hrs Rover Bluetooth mode, 6hrs Base mode (2W),
24hrs Static mode. |
40hrs Rover Bluetooth mode, 7hrs Base mode (5W),
48hrs Static mode. |
|
| Battery solution | 27000mAh (Optional) | 27000mAh (Optional) | |
| Communications | |||
| I/O interface | 1*5-pin LEMO port, power supply, RS232,
external radio communication port |
1*5-pin LEMO port, power supply, RS232, external radio communication port | |
| 1*USB Type-C port, charging, data download | 1*USB Type-C port, charging, data download | ||
| 1*SIM card slot, Nano SIM | 1*SIM card slot, Nano SIM | ||
| 1*UHF antenna interface | 1*UHF antenna interface | ||
| Internal UHF | 2W receiver and transmitter, Typical 8km working distance | 5W receiver and transmitter, Typical 20km working distance | |
| Frequency band | 410MHz ~ 470MHz, supports frequency modification | 410MHz ~ 470MHz, supports frequency modification | |
| Protocols | Trimtalk450S, Alphatalk15, South, Satel, PCC-EOT | Trimtalk450S, Alphatalk15, South, Satel, PCC-EOT | |
| Cellular network | Full frequency multi-band 4G modem,
supports TDD-LTE/FDD-LTE/WCDMA/CDMA2000 |
Full frequency multi-band 4G modem,
supports TDD-LTE/FDD-LTE/WCDMA/CDMA2000 |
|
| WiFi | 802.11 b/g standard, access point & client mode,
supports accessing to hotspot for correction transmission |
802.11 b/g standard, access point & client mode, supports accessing to hotspot for correction transmission | |
| Bluetooth | Bluetooth 5.2 classical/BLE proprietary dual-mode | Bluetooth 5.2 classical/BLE proprietary dual-mode | |
| Differential data format | RTCM2x, RTCM3x, CMR&CMR+, sCMRx | RTCM2x, RTCM3x, CMR&CMR+, sCMRx | |
| Data storage | |||
| Memory | 64GB, supports cyclic storage, with ability to collect
almost 4 years raw observation based in 5s interval |
64GB, supports cyclic storage, with ability to collect
almost 4 years raw observation based in 5s interval |
|
| User interaction | |||
| Operating system | Linux OS | Linux OS | |
| Buttons | Power key and Functional key | Power key and Functional key | |
| Display | 1.3-inch IPS display with 240*240 resolution | 1.3-inch IPS display with 240*240 resolution | |
| Voice | Intelligent voice prompts | Intelligent voice prompts | |
| Web UI | Supports Web UI configuration | Supports Web UI configuration | |
Aplikasi Cocok untuk:
-
Pemetaan topografi skala besar
-
Konstruksi & infrastruktur
-
Monitoring lahan & tambang
-
Survey pertanian & kehutanan
